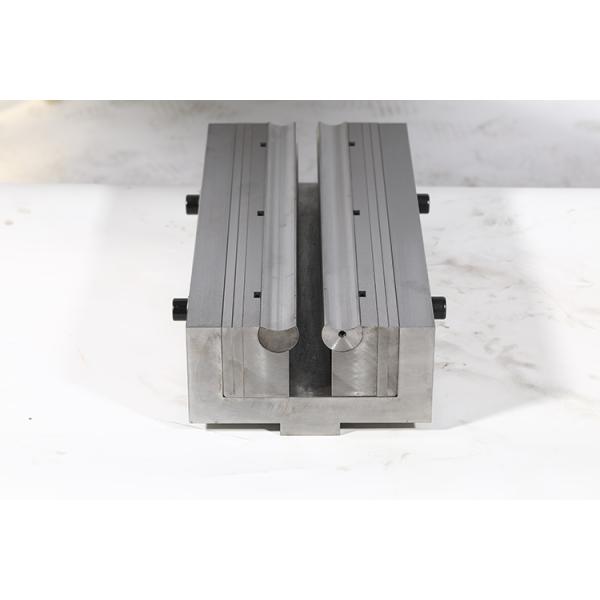

Groove Mold Lower Dies Custom Press Brake Tooling 42CrMo

Name: Groove Mold Lower Dies Custom Press Brake Tooling 42CrMo
Brand: Lynccn
Price: 500.00 USD

China Groove Mold Lower Dies Custom Press Brake Tooling 42CrMo wholesale

Place of Origin : Anhui, China

Brand Name : Lynccn

Model Number : Adjustable Groove Mold 32

Packaging Details : Adjustable Groove Mold Lower Dies for Press Brake Machine
Package:Wooden crate with soft film layers inside

Supply Ability : 200 Set/Sets per Month Adjustable Groove Mold Lower Dies for Press Brake Machine

Price : $500.00 - $1,000.00/sets

Shaping Mode : Forging Mould

Product Material : 42CrMo

Product : Press brake tooling for press brake tooling

Product Name : Adjustable Groove Mold Lower Dies for Press Brake Machine

Forming method : Stamping

Material : 42CrMo

Hardness : 45-50HRC

Application : Press brake machines

Color : Metallic

Precision Level : Very High

Package : Wooden crate with soft film layers inside

Size : 500mm or Customized Size

MOQ : 1 Set

Port : Shanghai port

Contact Now

Adjustable Groove Mold Lower Dies for Press Brake Machine

Product Description

Groove Mold Lower Dies Custom Press Brake Tooling 42CrMo

Press brake tool. It is a tool used by the bending machine to form and process sheet metal. This tool consists of various parts, and different molds consist of different parts. It mainly realizes the processing of the shape of the article by changing the physical state of the formed material. A tool used to make a blank into a specific shape and size under the pressure of a bending machine.

Product Name	Press Brake Bottom Die
Material	42CrMo
Color	Metallic
Size	Customizable Sizes
Hardness	45-50HRC
Forming Method	Stamping
Application	Used on press brake machine

Support customization, please let us know your requirements

1. Material
2. Forging

3. a. Miller Processing(if your products are small)
b. Planer Processing(if your products are large)
4. Precisional Grinder Processing
5. Finished Products
6. Measuring
7. Packing: Wooden crate with soft film layers inside
8. Delivery Details: Shipped in 20 days after payment

Products Show

Standard mould
1. When ordering a standard mold, first select the shape of the mold.

2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions

Special forming mould
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.

Product Categories

Our Company

Exhibition & Certificate

Packaging

FAQ

1. Can you put my brand name (logo) on these products?
Yes we can, but only for products length less than 1000mm.

2. When can you ship the products after we make payment?
Production time is normally 10-25 days. We will deliver your products to port in 2 days

3. What is the Minimum Order Quantity (MOQ) for your OEM service?
MOQ:1pc

4. How can you guarantee the quality?
We are the only constitutor of Chinese National Press Brake Mold Industry Standard. We will offer you 3 months guarantee once you purchase from us. We have IQNET Certificate.

5. Is it possible to visit your company? How can I get there?
We would love to have you. We can send you invitation for VISA application and we will collect you in Nanjing Airport or Railway station.
